PostgreSQL communications

Concept

A PostgreSQL communication is a set of requests / responses between a PostgreSQL client and a PostgreSQL database.

It is a sequence of related TCP packets in a TCP session between a client and a server.

Each Psql communication is associated with:

Source and destination IP address
Source and destination TCP port
The connection information (user, database, protocol version...)
The Tables used in the SQL requests if any
The kind of request (simple or extended query)
- The SQL queries used
- The cursors, portals and prepared statements used
- The table fields used in where clauses, join clauses, or in output columns
- The table fields inserted or updated
The response with its status, error and data rows

The Psql communications are extracted while parsing the TCP sessions in streaming, on Spider backend.

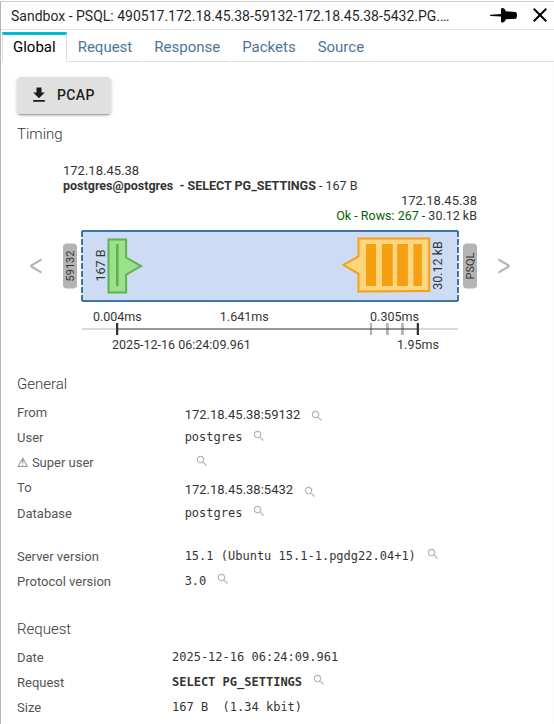

Global Tab

Timing

The timing diagram shows much information at a glance:

General

The General section shows identification information:

Field	Description
From	Host and port of the captured client
User	The user used to connect to PostgreSQL
Super user	Tells if the user has superuser permissions
To	Host and port of the captured server / service
Database	PostgreSQL database the user connected to
Server version	PostgreSQL database version
Protocol versions	PostgreSQL wire protocol version

From, Origin and Identification are showing, by order of preference:
- The short name of the Host, as extracted during integration in the backend, or as renamed by a user
- The FQDN of the Host
- The IP address, if no Host found
All other fields are extracted from the Startup exchanges at PostgreSQL connection time.

Request

The Request section shows summary information of the request part:

Field	Description
Template	Computed query name to identify the request
Date	Date of the request, user's local time
Request	The main SQL command issues, concatenated with the Tables queried
Size	Total bytes sent to the server

Spider request Template is a very important [feature] allowing to have a unique name for all the same SQL calls, removing variables etc.

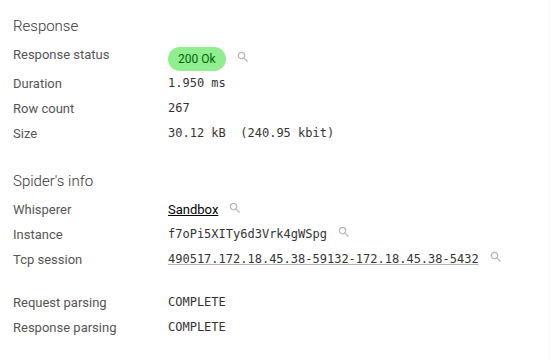

Response

The Response section shows summary information of the response part:

Field	Description
Status	A computed status, made to match HTTP semantics
Duration	The different between request start and response end
Row count	Count of rows returned when fetching data
Size	Total bytes received by the server

Spider info

This section shows Spider own information:

Field	Description
Whisperer	Name and link to the Whisperer
Instance	Instance of the Whisperer that captured the communication
Tcp session	Tcp session id and link
Request parsing	Parsing status of the request
Response parsing	Parsing status of the response

Actions

When packets are saved and available, you may download a .pcap file with this communication only.

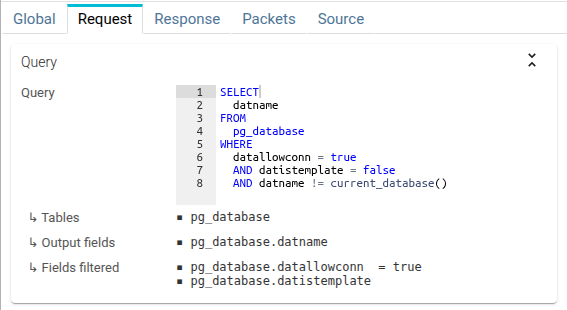

Request tab

The Request tab shows the series of messages sent by the client to the database.

In simple queries, there is only one query message.
In extended queries, there are more messages, most often:
- parse message
- bind message
- execute message
- sync message

Queries are shown pretty printed. And the extraction done by Spider is shown below the query:

tables used
fields used in where clauses,
fields used in join clauses,
fields in output
fields inserted or updated

Fields in output or in where clauses may be declared as tags to extract their values from both requests or responses messages.

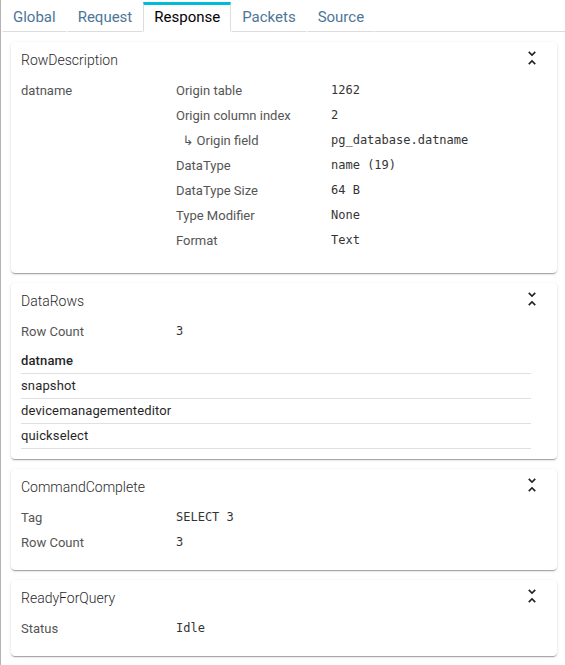

Response tab

The Response tab shows the series of messages sent by the server in response to the client.

RowDescription messages are shown with the Origin field when extracted from the associated query.
DataRow messages are aggregated for readability in a single DataRows message and shown as a grid.

Packets tab

The Packets tab shows the network packets composing the PostgreSQL communication.
You may open them by clicking on the rows.

Field	Description
Dir	Diraction of the packet
Time	Time the packet was captured
Payload	Sized of the TCP payload
Info	Flags and beginning of TCP payload, in ASCII

::: note When the communication is over TLS, the packets are encrypted.
The only ways to see them decrypted is to access the TCP session, and:

to read the packets from the beginning, in the content tab,
or to export the session in .pcapng format (for Wireshark or alike) :::

Source

The Source tab shows the PostgreSQL communication in JSON format.
Below is a sample PostgreSQL communication as it is available through the API:

{
    "@id": "bQaw4laRQk2ooP5pGtW18w.f7oPi5XITy6d3Vrk4gWSpg.490517.172.18.45.38-59132-172.18.45.38-5432.2630178313.PG.92.41",
    "@type": "PgCommunication",
    "dateModified": "2026-01-03T15:45:12.160+00:00",
    "version": "0.1",
    "tcpSession": "bQaw4laRQk2ooP5pGtW18w.f7oPi5XITy6d3Vrk4gWSpg.490517.172.18.45.38-59132-172.18.45.38-5432.2630178313",
    "instanceId": "f7oPi5XITy6d3Vrk4gWSpg",
    "name": "490517.172.18.45.38-59132-172.18.45.38-5432.PG.92.41",
    "whisperer": "bQaw4laRQk2ooP5pGtW18w",
    "kind": "simple",
    "req": {
        "command": "SELECT",
        "template": "-",
        "tables": [
            "PG_DATABASE"
        ],
        "size": 122,
        "packets": [
            "bQaw4laRQk2ooP5pGtW18w.f7oPi5XITy6d3Vrk4gWSpg.490517.172.18.45.38-59132-172.18.45.38-5432.2630178313-264",
            "bQaw4laRQk2ooP5pGtW18w.f7oPi5XITy6d3Vrk4gWSpg.490517.172.18.45.38-59132-172.18.45.38-5432.2630178313-265"
        ],
        "start": 1765862694.960045,
        "startDate": "2025-12-16T05:24:54.960Z",
        "end": 1765862694.960047,
        "status": "COMPLETE",
        "subCommands": [
            {
                "messageType": "Query",
                "content": {
                    "query": "SELECT datname FROM pg_database WHERE datallowconn = true AND datistemplate = false AND datname != current_database()",
                    "_analyzedQuery": {
                        "tablesUsed": [
                            "pg_database"
                        ],
                        "outputFields": [
                            {
                                "index": 0,
                                "path": "pg_database.datname",
                                "kind": "direct",
                                "sources": [
                                    {
                                        "table": "pg_database",
                                        "column": "datname"
                                    }
                                ]
                            }
                        ],
                        "checkedFields": [
                            {
                                "path": "pg_database.datallowconn",
                                "value": true
                            },
                            {
                                "path": "pg_database.datistemplate",
                                "value": null
                            }
                        ]
                    }
                },
                "command": "SELECT",
                "truncated": true
            }
        ],
        "commandsCount": 1,
        "statementsUsed": [],
        "portalsUsed": [],
        "cursorsUsed": [],
        "endDate": "2025-12-16T05:24:54.960Z"
    },
    "res": {
        "rowCount": 3,
        "size": 121,
        "packets": [
            "bQaw4laRQk2ooP5pGtW18w.f7oPi5XITy6d3Vrk4gWSpg.490517.172.18.45.38-59132-172.18.45.38-5432.2630178313-266",
            "bQaw4laRQk2ooP5pGtW18w.f7oPi5XITy6d3Vrk4gWSpg.490517.172.18.45.38-59132-172.18.45.38-5432.2630178313-267"
        ],
        "start": 1765862694.960365,
        "end": 1765862694.960369,
        "endDate": "2025-12-16T05:24:54.960Z",
        "status": "COMPLETE",
        "resultsCount": 6,
        "subResults": [
            {
                "messageType": "RowDescription",
                "content": {
                    "fields": [
                        {
                            "name": "datname",
                            "tableOID": 1262,
                            "colAttr": 2,
                            "dataTypeOID": 19,
                            "dataTypeSize": 64,
                            "typeModifier": -1,
                            "format": 0
                        }
                    ]
                }
            },
            {
                "messageType": "DataRow",
                "content": {
                    "values": [
                        "snapshot"
                    ]
                }
            },
            {
                "messageType": "DataRow",
                "content": {
                    "values": [
                        "devicemanagementeditor"
                    ]
                }
            },
            {
                "messageType": "DataRow",
                "content": {
                    "values": [
                        "quickselect"
                    ]
                }
            },
            {
                "messageType": "CommandComplete",
                "rowCount": 3,
                "statusCode": 200,
                "content": {
                    "tag": "SELECT 3"
                }
            },
            {
                "messageType": "ReadyForQuery",
                "content": {
                    "status": "Idle"
                }
            }
        ],
        "startDate": "2025-12-16T05:24:54.960Z"
    },
    "stats": {
        "statusCode": 200,
        "statusText": "Ok",
        "duration": 0.00032401084899902344,
        "withTls": true,
        "dst": {
            "ip": "172.18.45.38",
            "port": 5432,
            "socket": "172.18.45.38:5432"
        },
        "src": {
            "ip": "172.18.45.38",
            "port": 59132,
            "socket": "172.18.45.38:59132"
        },
        "timespan": {
            "gte": "2025-12-16T05:24:54.960Z",
            "lte": "2025-12-16T05:24:54.960Z"
        },
        "tags": {
            "values": {},
            "count": {},
            "cardinality": {}
        }
    },
    "connectionMetadata": {
        "user": "postgres",
        "database": "postgres",
        "protocolVersion": "3.0",
        "client_encoding": "UTF8",
        "DateStyle": "ISO, MDY",
        "default_transaction_read_only": "off",
        "is_superuser": "on",
        "server_version": "15.1 (Ubuntu 15.1-1.pgdg22.04+1)",
        "session_authorization": "postgres",
        "TimeZone": "Etc/UTC"
    },
    "pgParsing": "bQaw4laRQk2ooP5pGtW18w.f7oPi5XITy6d3Vrk4gWSpg.490517.172.18.45.38-59132-172.18.45.38-5432.2630178313.PgParsingLog",
    "_update": 1017,
    "_eTag": "\"8b-XwVu0Um2r3QrGQcKmHn7s6nw1Mg\""
}

Most fields are self-explanatory. Most fields are indexed and searchable.

Some extra explanation:

Field	Description
connectionMetadata	Data extracted at connection time, and copied to all communications inside the session
stats	Stats object regroup most important information
stats.timespan	Indexed as range, to allow range searching and aggregations
stats.src\|dst.name	Hostname resolved on the Whisperer
stats.tags.*	Extracted tags values, count and cardinality
req\res.status	Parsing status
_update	Internal field linked to parsing concurrency control
